High Ingress Protection!
B series provides up to IP66 protection class as a standard which provides safety for internal equipments.
By adding canopy & plinth, “”indoor wall mounting type”” enclosures transforms in to “”outdoor floor mounted type””.
Simple installation and flexible cable entries with screwed type bottom and top plates.

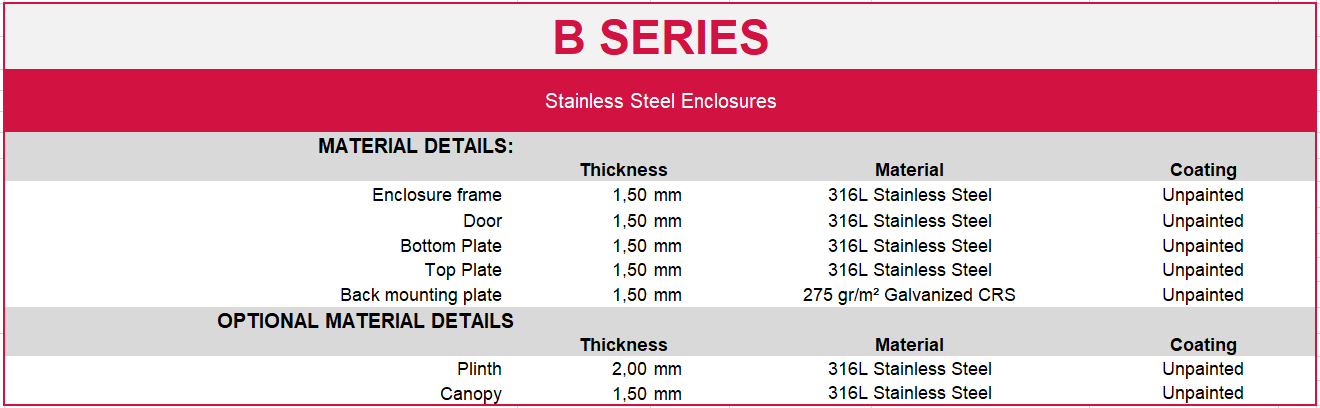

Made of 316L Stainless steel with optional coating.
Protection class according to IEC 60 529: IP66
IK CODE: IK10
SURFACE TREATMENT:
COATING:
LOCK: Quarter Turn Lock with DB key
HINGES: Hidden hinges, stainless steel 130° opening angle
INSETS: Door earthing cable (1 piece for each door)
GTIP CODE: 8538.10.00.00.00
CERTIFICATES:
IEC 62208-TSE
IP66 Test
IK10 Test
EAC Certificate
RED Certificate
DECLARATIONS:
CE Declaration of Conformity
